Adjustable Handle

Discussion in 'Safety Razors' started by twhite, Aug 21, 2020.

  1. twhite

    twhite Peeping Tom

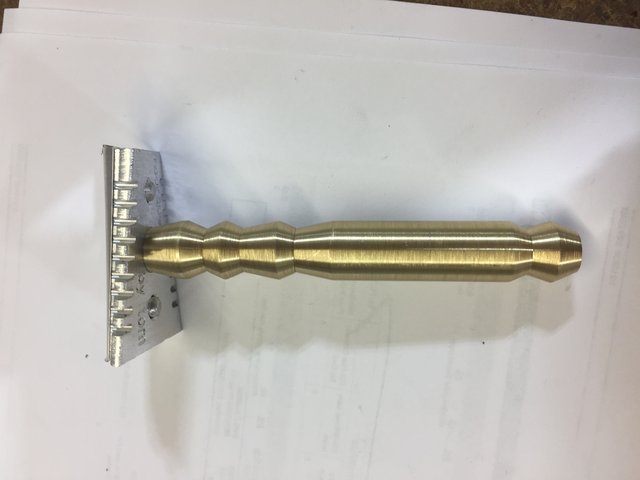

    I have been talking to @PLANofMAN for a bit now. Working on some stuff for him. Anyhow he mentioned how he would like to see somebody produce an adjustable handle. I thought that was a way cool idea.

    Well I had a bit of free time today, so I made one.
    So there were 4 pieces to start. Here they are. The main base handle. Then the main secondary piece. It is the one with the long threads. Then 2 other spacers of various shape. After these pictures I actually made a thick 6mm washer not threaded. That can be interchanged.
    [​IMG]
    Here are a few configurations
    No spacers 57.5mm 50 grams
    [​IMG]
    Base plus secondary piece
    70.6mm 64 grams
    [​IMG]
    Base secondary and short spacer
    78.2mm 70 grams
    [​IMG]
    Base secondary and long spacer
    82.1 mm 72 grams
    [​IMG]
    Everything
    89.6mm 77 grams
    [​IMG]

  2. lightcs1776

    lightcs1776 Well-Known Member

    Cool idea. Well done.

    Sent from my SM-G960U using Tapatalk

    GAW9576 likes this.
  3. brit

    brit in a box

    very cool Tom..

    GAW9576 likes this.
  4. Jim99

    Jim99 Gold Water Shaver

    Woah! Way cool, Tom!

    GAW9576 likes this.
  5. John Beeman

    John Beeman Little chicken in hot water

    Very cool.


    ;)

    GAW9576, ischiapp, PLANofMAN and 3 others like this.
  6. PLANofMAN

    PLANofMAN Paperboy

    Article Team
    I never said it was an "original" idea. :)

    Tom, as usual, took an offhand comment, extrapolated and expanded on it and made another extraordinary addition to his growing protfolio.

    GAW9576, brit, twhite and 1 other person like this.
  7. John Beeman

    John Beeman Little chicken in hot water

    I think shaving with each combination would be an interesting experience with the weight and length changes. I’m curious what happens to the balance point.

    GAW9576 and brit like this.
  8. PLANofMAN

    PLANofMAN Paperboy

    Article Team
    It changes. That was one of the purposes of this, to keep a specific balance point by shortening or lengthening the handle.

    I suppose Tom could make a handle with some Mercury inside, just to create a variable weight razor as the mercury slid around, though that would be a borderline prank.

    GAW9576, brit and twhite like this.
  9. brit

    brit in a box

    one could build a telescoping version with a lock nut like the window squeegee's have..:)

    GAW9576, ischiapp and twhite like this.
  10. Enrico

    Enrico Popcorn

    Great idea!

    :eatdrink013:

    GAW9576 and brit like this.
  11. richgem

    richgem suffering from chronic clicker hand cramps

    Cool, Tom! I can only guess what you will think up (or be inspired by) next.

    Something with a laser level might be cool... or extremely dangerous. Win some, lose some, I guess. :eek:

    GAW9576, brit and twhite like this.
  12. BBS

    BBS Well-Known Member

    Make a telescopic handle would be easier and as far as the balance hollow center with a metal slug that can slide back and forth as a counterbalance at all angles.

    GAW9576, brit and twhite like this.
  13. Jayaruh

    Jayaruh The Cackalacky House Pet

    Supporting Vendor
    Very cool, Tom.

    GAW9576 and brit like this.
  14. brit

    brit in a box

    i am thinking the telescoping handle-the heavy lock nut in stays in the middle and have a solid heavy section in the bottom end of the handle.that way when it's extended its balance will stay the same or similar..

    GAW9576 likes this.
  15. twhite

    twhite Peeping Tom

    I have a few ideas. Checking into some Acme thread and nuts. Also multi lead rod to give a faster adjustment.

  16. brit

    brit in a box

    very cool..

    GAW9576 likes this.
  17. twhite

    twhite Peeping Tom

    Take 2 on an Adjustable handle. 81 mm to over 115mm long 67 grams.
    [​IMG][​IMG]


    Sent from my iPhone using Tapatalk Pro

  18. brit

    brit in a box

    awesome Tom..:)

  19. twhite

    twhite Peeping Tom

    Thanks with that 115 reach I can get all of those hard to shave spots.


    Sent from my iPhone using Tapatalk Pro

    GAW9576, Jim99 and brit like this.
  20. brit

    brit in a box

    love the design,hows the balance?

    Karl G and GAW9576 like this.
